Voronoi Diagrams

A variety of questions about Voronoi Diagrams presented in a self-marking, online exercise.
Construction Level 1 Level 2 Level 3 Level 4 Exam Menu Help More

This is level 1: general questions about a diagram of a rectangular shaped island. You can earn a trophy if you get at least 7 questions correct and you do this activity online.

Voronoi Diagram

This is a diagram of Oblong Island which, amazingly, is in the shape of a rectangle. Any location on the island can be defined by a set of coordinates.

There are seven camping sites on the island labelled A to G.

1. What are the coordinates of site C ? [Type in your answer as two numbers separated by a comma]

 Correct Wrong

2. What are the coordinates of site B ?

 Correct Wrong

3. A hiker finds themself at the point (2,3) at sunset. Which is the nearest campsite to that location?

 Correct Wrong

4. Which is the nearest site to (5,3)?

 Correct Wrong

5. Which is the nearest site to (2.4,2.1)?

 Correct Wrong

6. What are the coordinates of the midpoint of the line joining sites F and E?

 Correct Wrong

7. What are the coordinates of the point that is exactly the same distance (equidistant) from sites A, B and G?

 Correct Wrong

8. What are the y-coordinates of all the points on the edge equidistant from sites D and E?

 Correct Wrong

9. Each of the coloured regions in the diagram is called a cell. Each cell shows all of the locations that are closer to the site it containes than to any other site.

The units on the axes represent kilometers. Find the area, in square kilometers, of the cell containing site E.

 Correct Wrong

10. Multiple choice: which one of the following statements is true? Type the letter of the true statement:

A. The point (1,1) is equidistant from sites G and F.
B. The point (2,2) is closer to F than it is to G.
C. The point (3,3) is closer to site D than to any other site.
D. The site D is further from E than the site E is from F.
E. The sites A, B and D lie in a straight line.

 Correct Wrong
Check

This is Voronoi Diagrams level 1. You can also try:
Level 2 Level 3 Level 4

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
Why am I learning this?

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 14 September 'Starter of the Day' page by Trish Bailey, Kingstone School:

"This is a great memory aid which could be used for formulae or key facts etc - in any subject area. The PICTURE is such an aid to remembering where each number or group of numbers is - my pupils love it!
Thanks"

Comment recorded on the 8 May 'Starter of the Day' page by Mr Smith, West Sussex, UK:

"I am an NQT and have only just discovered this website. I nearly wet my pants with joy.
To the creator of this website and all of those teachers who have contributed to it, I would like to say a big THANK YOU!!! :)."

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.
Featured Activity

ChristMaths

ChristMaths

Christmas activities make those December Maths lessons interesting, exciting and relevant. If students have access to computers there are some online activities to keep them engaged such as Christmas Ornaments and Christmas Light Up.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there is a mirror site at Transum.info that contains most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

For Students:



For Teachers:

For All:

Transum.org is a proud supporter of the kidSAFE Seal Program
©1997-2024 WWW.TRANSUM.ORG

© Transum Mathematics 1997-2024
Scan the QR code below to visit the online version of this activity.

This is a QR Code

https://www.Transum.org/go/?Num=850

Description of Levels

Close

Close

Perpendicular Bisector - A step-by-step guide showing how to construct the perpendicular bisector of a line segment. This skill can then be used to construct a Voronoi Diagram.

Printable Worksheet: Get a real 'feel' for Voronoi diagrams with this resource on which you can draw Voronoi diagrams using the good, old-fashioned compasses, pencil and ruler method.

Level 1 - General questions about a diagram of a rectangular shaped island.

Level 2 - Questions involving the vocabulary and mathematics of Voronoi diagrams.

Level 3 - Find the coordinates of the missing sites in ten Voronoi Diagrams.

Level 4 - Define a region on a Voronoi Diagrams by finding the equations of the edges.

Exam Style Questions - A collection of problems in the style of IB exam paper questions.

More on Loci including lesson Starters, visual aids, investigations and self-marking exercises.

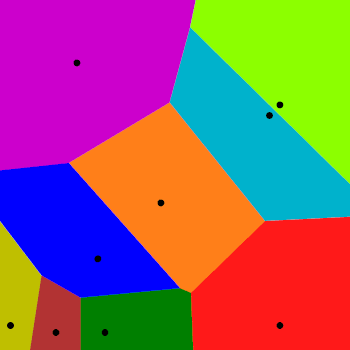

Voronoi move euclidean by Jahobr [CC0]
