Scale Drawings

Room1

"Measure line segments and angles in geometric figures, including interpreting scale drawings."

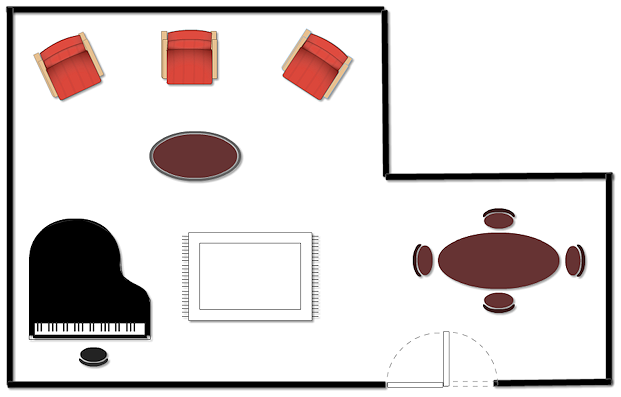

This is the scale drawing of a room. The scale is 1 centimetre represents 1 metre. Use the ruler to measure the length of the room then work out the length of the real room in metres to one decimal place.

m Correct Wrong
You can drag the ruler onto the diagram
Ruler
Room7

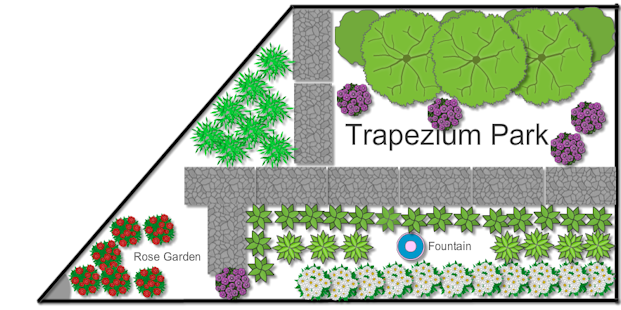

This is the scale drawing of Trapezium Park. Use the protractor to measure the acute angle of the corner of the park by the rose garden. Give your answer to the nearest whole number.

o Correct Wrong
You can drag the protractor onto the diagram
Protractor
Room4

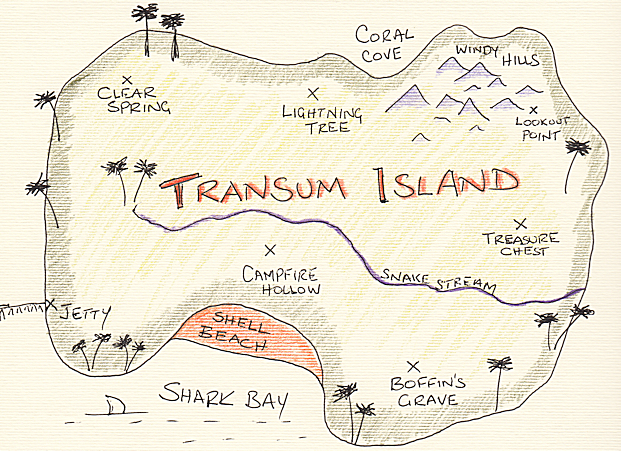

This is a map of Transum Island. The scale is 1:100000. Give your answers in kilometers to one decimal place.

Calculate the distance between Clear Spring and Lightening Tree.

km Correct Wrong

Calculate the distance between Campfire Hollow and the Treasure Chest.

km Correct Wrong

Calculate the distance between Boffin's Grave and the Lookout Point.

km Correct Wrong
Press 'Shift' and drag to rotate the ruler.
Ruler
Room3

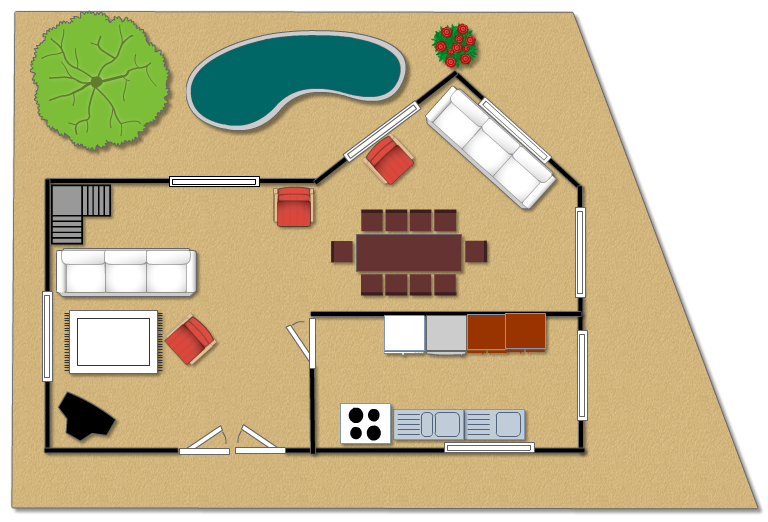

This is the floor plan of a house. Measure the internal angle between the walls at the corner of the house by the rose bush.

o Correct Wrong

Measure the obtuse external angle between the walls
near the pool.

o Correct Wrong
Press 'Shift' and drag to rotate the protractor.
Protractor
Room5

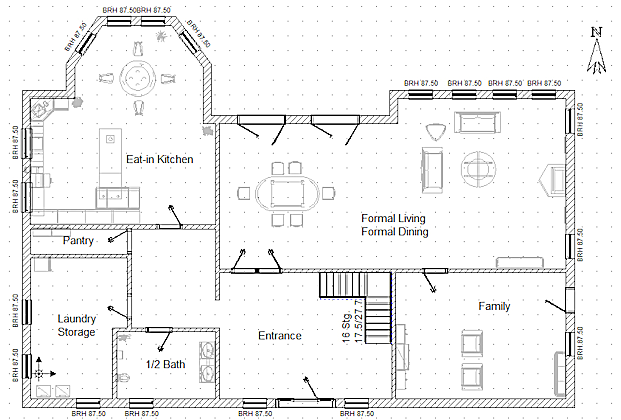

This is a house floor plan with a scale of 1:250. Calculate the following lengths in the actual house to 1 decimal place.

The diagonal of the family room.

m Correct Wrong

The diagonal of the pantry.

m Correct Wrong

The diagonal of the house from the corner of the laundry to the corner of dining room.

m Correct Wrong
Press 'Shift' and drag to rotate the ruler.
Ruler
Room6

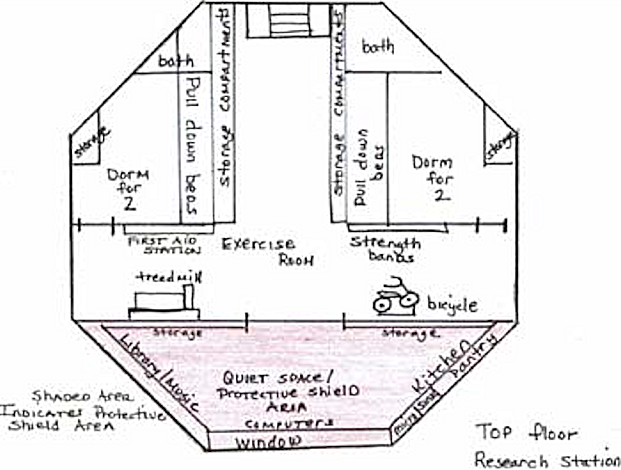

This is a student entry to NASA's Lunar Research Station Design Challenge. Measure the acute angle of the room where the kitchen is.

o Correct Wrong

Measure the obtuse external angle between the walls at the back of the storage area in the dorm nearest the treadmill.

o Correct Wrong
Press 'Shift' and drag to rotate the protractor.
Protractor
