This is level 4: graphs of linear functions describing ratios. You will be awarded a trophy if you get at least 9 answers correct and you do this activity online.

Type in fractions using a forward slash like this 3/8 for three eighths.  Give ratios and fractions in their lowest terms.

1

Frozen orange juice concentrate was introduced when scientists discovered a method to remove the water from fresh orange juice, creating a concentrate. When you are thirsty simply add chilled water to the concentrate in the ratio 6:1 (water to concentrate)

Jugs

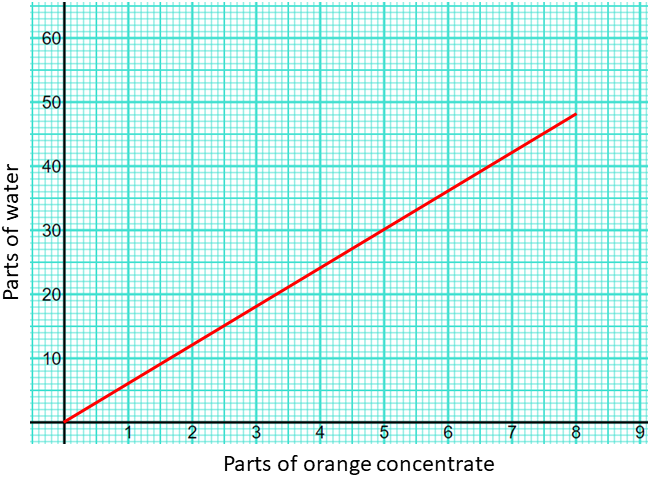

The graph below represents this six to one ratio

Linear function
Use the graph to answer the following questions:

How many glasses of water would be needed to mix with 4 glasses of concentrate?

☐ ☐ ✓ ✗

2

How many jugs of concentrate would be needed to mix with 18 jugs of water?

☐ ☐ ✓ ✗

3

The Someday printing company has a logo which fits into a rectangular space.
Someday logo

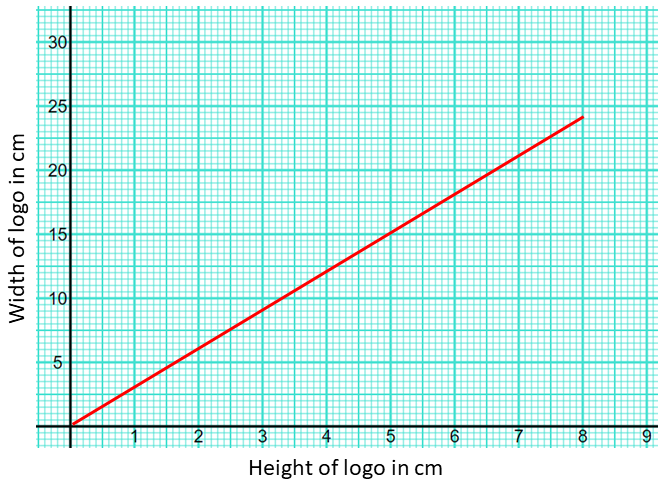

The graph show the possible dimensions of the logo.

Linear function
What is the ratio of the width to the height of this logo?

☐ ☐ ✓ ✗

4

What is the height in centimetres of a copy of the logo that is 18cm wide?

☐ ☐ ✓ ✗

5

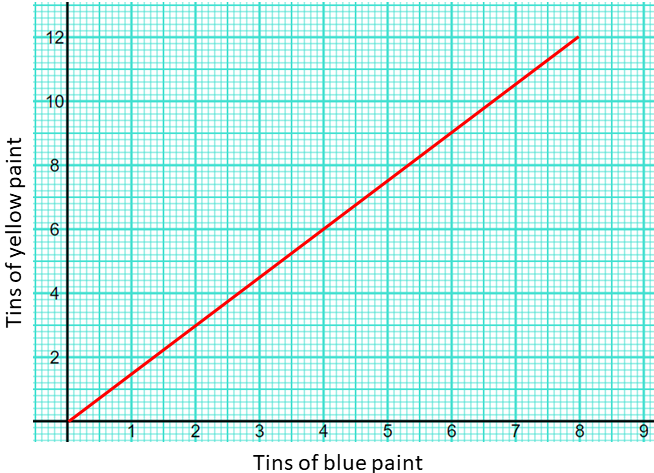

The graph below shows how various quantities of a certain hue of green paint can be made by mixing together yellow and blue paint.

Linear function
What is the ratio of yellow to blue paint represented by this graph?

☐ ☐ ✓ ✗

6

What fraction of a tin of blue paint would be needed to mix with one tin of yellow paint to produce the same hue of green paint?

☐ ☐ ✓ ✗

7

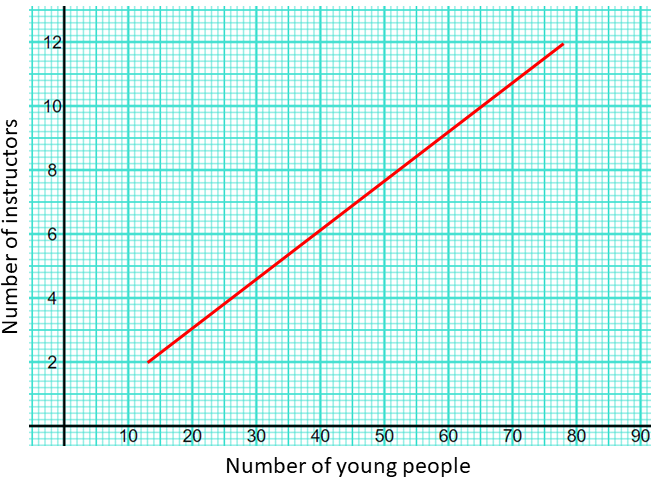

The graph shows the recommended minimum ratio of instructors to young people for hill walking activities. The graph is a line segment from (13,2) to (78,12).
Linear function
What ratio of instructors to young people does the graph represent?

☐ ☐ ✓ ✗

8

When using the graph above to work out the number of instructors for a particular number of young people it would not be possible to have a faction on an instructor so the number of instructors should always be rounded up to the next whole number.

How many instructors would be required for a group of 30 young people?

☐ ☐ ✓ ✗

9

The ratio \(y:x\) is equal to \(2:1\).
On squared or graph paper draw the graph of \(y\) as a function of \(x\) for \(x \le 10\).

What is the equation of your graph?

☐ ☐ ✓ ✗

10

The ratio \(y:x\) is equal to \(7:1\).

What is the equation of the graph of this relationship?

☐ ☐ ✓ ✗

11

The ratio \(y:x\) is equal to \(1:5\).

What is the gradient of the graph of this relationship?

☐ ☐ ✓ ✗

12

The ratio \(y:x\) is equal to \(3:2\).

What is the equation of the graph of this relationship?

☐ ☐ ✓ ✗
