# Histograms

## Practise drawing and reading information from histograms displaying grouped data

##### Level 1Level 2Level 3Level 4Level 5Exam-StyleDescriptionHelpMore Statistics

This is level 5: general questions about histograms with varying class widths. You can earn a trophy if you get at least 6 questions correct and you do this activity online.

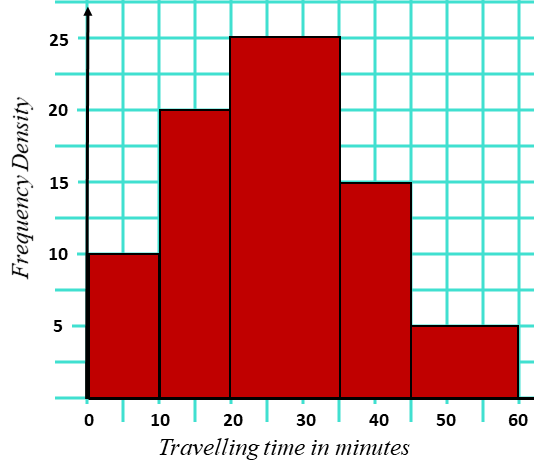

 The histogram above shows the time taken to comute to work for the employees of a large company.1. How many people take between 35 and 45 minutes to get to work? 2. How many people take less than 20 minutes to get to work? 3. What is the frequency of the modal class? 4. Fifty people from another town join the company. It takes them between 60 and 70 minutes to comute. An extra bar is added to the histogram above. What frequency density will the height of this bar represent? The histogram above was constructed from the data collected about the number of people per house in a rural village. As the data is discrete you will notice that, for example, the class boundaries for two people living in a house are 1.5 and 2.5. The number of houses with three occupants is 20.5. How many houses have five or six occupants? 6. What is the frequency of the modal class? 7. What is the total number of houses in the village? 8. What percent of houses have only one occupant? Give your answer to the nearest whole number.
Check

This is Histograms level 5. You can also try:
Level 1 Level 2 Level 3 Level 4

## Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

## Transum.org

This web site contains over a thousand free mathematical activities for teachers and pupils. Click here to go to the main page which links to all of the resources available.

## More Activities:

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 10 April 'Starter of the Day' page by Mike Sendrove, Salt Grammar School, UK.:

"A really useful set of resources - thanks. Is the collection available on CD? Are solutions available?"

Comment recorded on the 14 October 'Starter of the Day' page by Inger Kisby, Herts and Essex High School:

"Just a quick note to say that we use a lot of your starters. It is lovely to have so many different ideas to start a lesson with. Thank you very much and keep up the good work."

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.

#### Car Park Puzzle

Can you get your car out of the very crowded car park by moving other cars forwards or backwards? There are five levels of increasing difficulty and the interactive interface makes this a fun problem solving exercise.

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

Subscribe

## Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

## Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

## Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there are mirror sites at Transum.com and Transum.info that contain most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Ella Chandler, England

Saturday, December 11, 2021

"Level 1 and 2 of the 'Histogram' activity are incorrect, they show and ask questions about bar charts but refer to them as histograms when the y-axis is clearly labelled frequency, not frequency density. This is a shame as I find these activities very useful with my students and am sad to not have an activity I can with them for this topic.

[Transum: Thank you for your feedback Ella. The definitions of a histogram that I have read do not stipulate that the y-axis should represent frequency density unless the groups (bins) are not all the same width.]"

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

For Students:

For All:

© Transum Mathematics :: This activity can be found online at:
www.Transum.org/go/?Num=820

## Description of Levels

Close

Reading Graphs and Charts - Answer real-life problems from different types of graphs and charts including piece-wise linear graphs.

Level 1 - Show the height of one bar in an almost-complete histogram with fixed class intervals

Level 2 - Read information from histograms with fixed class intervals

Level 3 - Complete a frequency table with information from a histogram with unequal class intervals

Level 4 - Complete a frequency table with information from a histogram showing frequency density

Level 5 - General questions about histograms with varying class widths

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

## Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

## Histograms

Histograms are similar to bar charts but there is one important difference. It is the area of the bars in a histogram that is proportional to the frequency rather than the height.

The first couple of levels of this exercise features histograms with equal class widths which means the heights of the bars can be conveniently used to find the frequency.

Levels 3 onwards contain histograms with unequal class widths so the vertical axis can be thought of as the frequency density.

Frequency = Frequency density × Class Width

Histograms can be used to represent both discrete and continuous data but they are typically used for displaying continuous data.

To draw a histogram, the data first needs to be assigned to a number of different groups (classes or bins). There are various theories concerning how many of these groups there should be but the normal is between five and twenty depending on the amount of data. A number of consecutive groups containing very little data may be merged into a single group.
