Pythagoras' Theorem Exercise

A self marking exercise on the application of Pythagoras' Theorem.

Menu Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Exam 3D Help More

Here are some questions which can be answered using Pythagoras' Theorem. You can earn a trophy if you get at least 9 questions correct. Each time you finish a question click the 'Check' button lower down the page to see if you got it right! Diagrams are not to scale.

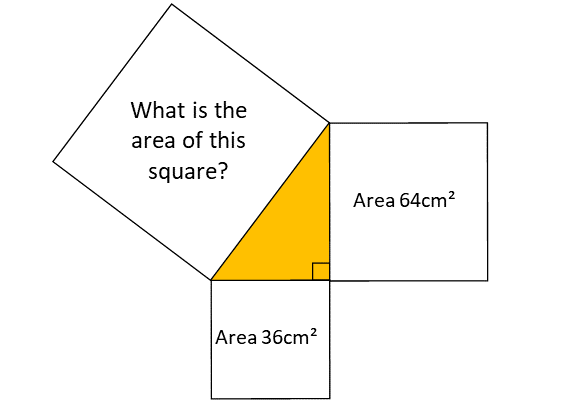

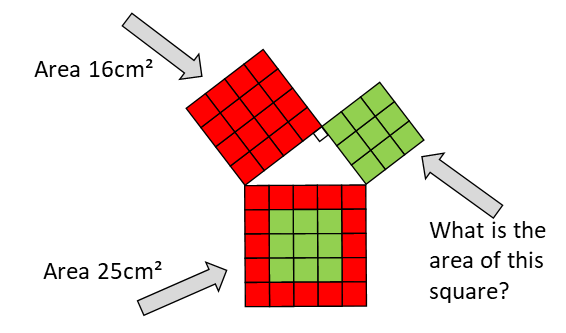

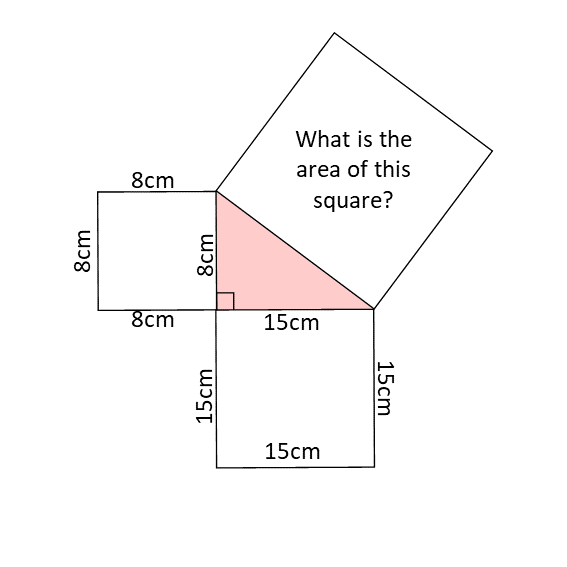

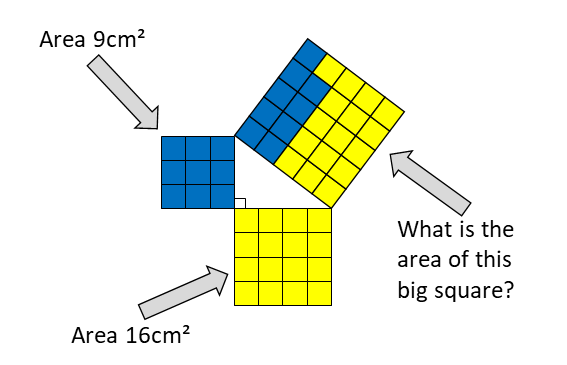

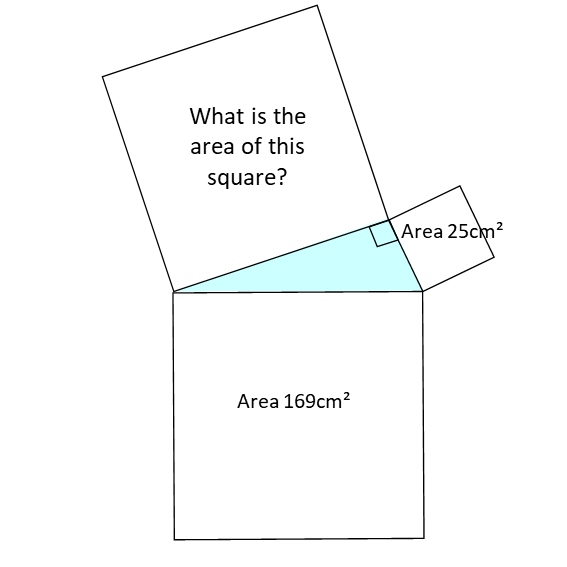

Diagram cm² Correct Wrong

Diagram cm² Correct Wrong

Diagram cm² Correct Wrong

Diagram cm² Correct Wrong

Diagram cm² Correct Wrong

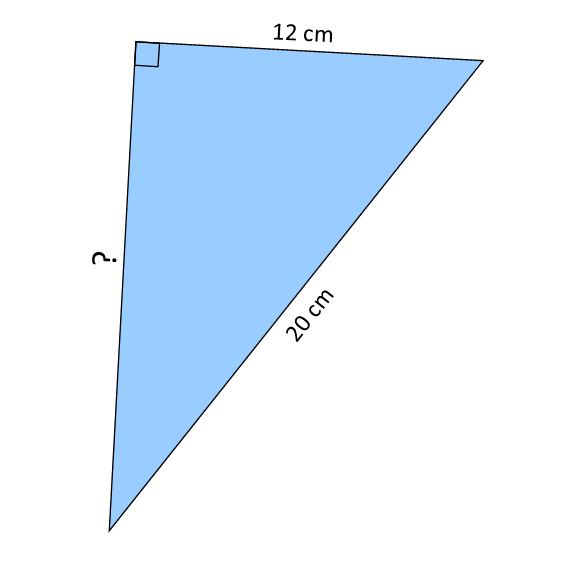

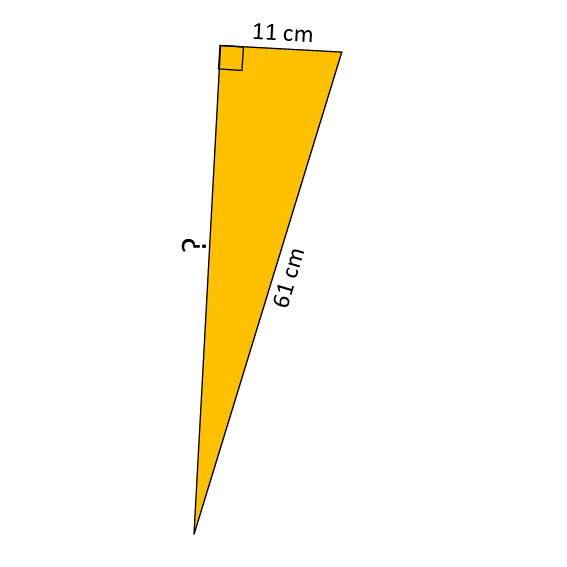

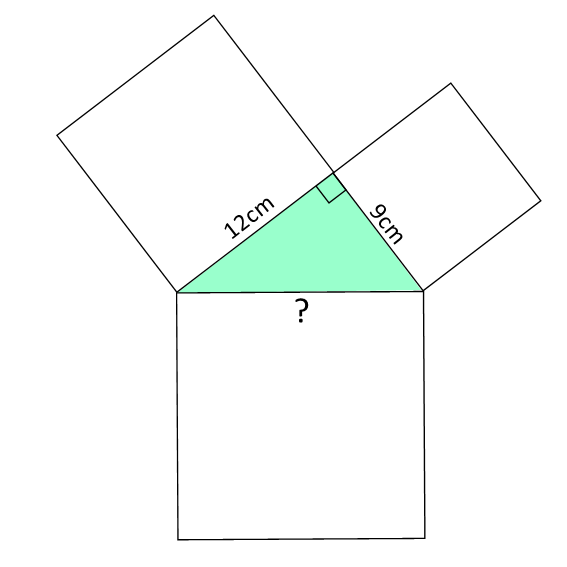

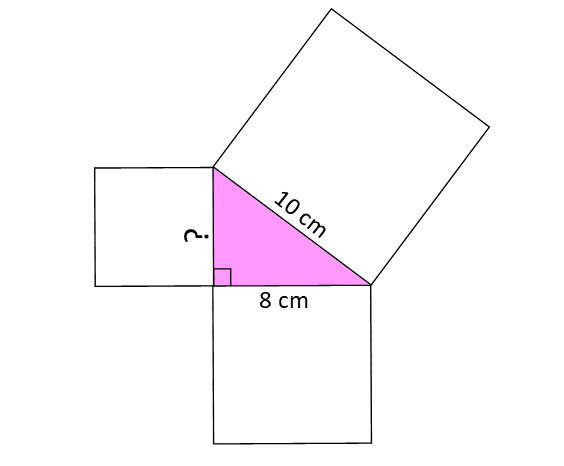

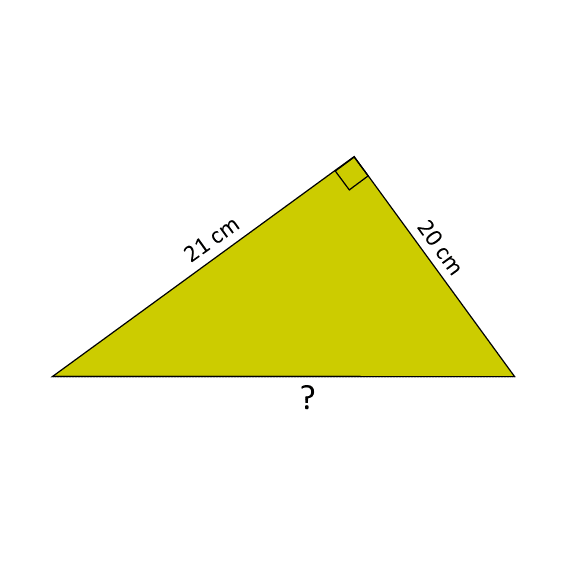

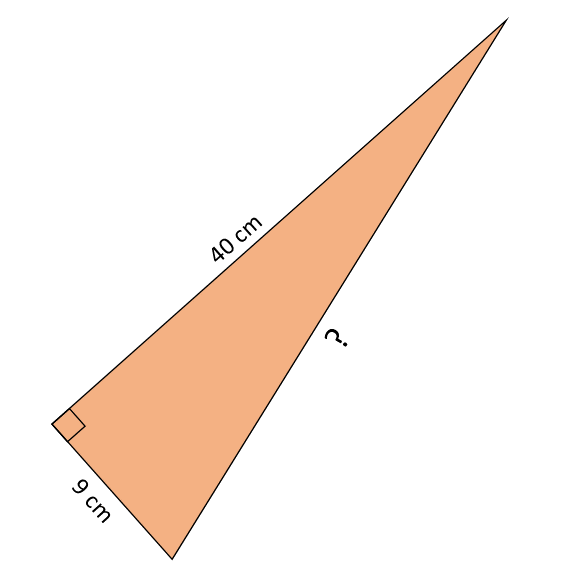

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Diagram cm Correct Wrong

Check

This is Pythagoras' Theorem Exercise level 0. You can also try:
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

Recently Updated

Factorising

Factorising

Practise the skills of algebraic factorisation in this structured online self-marking exercise. So far this activity has been accessed 53851 times and 34070 Transum Trophies have been awarded for completing it.

Why am I learning this?

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 9 April 'Starter of the Day' page by Jan, South Canterbury:

"Thank you for sharing such a great resource. I was about to try and get together a bank of starters but time is always required elsewhere, so thank you."

Comment recorded on the 25 June 'Starter of the Day' page by Inger.kisby@herts and essex.herts.sch.uk, :

"We all love your starters. It is so good to have such a collection. We use them for all age groups and abilities. Have particularly enjoyed KIM's game, as we have not used that for Mathematics before. Keep up the good work and thank you very much
Best wishes from Inger Kisby"

Whose Idea Was This?

Did you enjoy doing this 'Pythagoras' Theorem Exercise' activity? Are you curious about who originally came up with this idea in Maths? Discover more about one of the mathematicians who is associated with this concept.

Featured Activity

Remainder Race

Remainder Race

A brilliant game involving chance and choice requiring an ability to calculate the remainder when a two digit number is divided by a single digit number. There are one and two player versions and the rules are inspired by the Royal Game of Ur.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there is a mirror site at Transum.info that contains most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Gertrudis Jobs,

Thursday, October 27, 2022

"Level 6 - Question 9. I am standing in a rectangular hall, and my distances from three of the corners are 6 m, 9 m and 10 m. How far am I from the fourth corner? Give your answer correct to 3 significant figures.
wrong answer, answer is 12.0 (3 s.f).

[Transum: Thanks for your comment Gertrudis. Your answer is indeed correct if the order of measurements was different. You have made me realise that this question has three possible answers depending on the order of the measurements and which corner they refer to. This does make it a very interesting question. For the purposes of this exercise I have now added a diagram so the question only has one answer.]"

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

Transum.org is a proud supporter of the kidSAFE Seal Program

Description of Levels

Close

Close

Level 0 - A 'whole number only' introductory set of questions

Level 1 - Finding the hypotenuse

Level 2 - Finding a shorter side

Level 3 - Mixed questions

Level 4 - Pythagoras coordinates

Level 5 - Mixed exercise

Level 6 - More than one triangle

Level 7 - Harder exercise

Pythagorean Probe - Levels 4 to 6 are quite a challenge.

Exam Style questions requiring an application of Pythagoras' Theorem and trigonometric ratios to find angles and lengths in right-angled triangles.

Three Dimensions - Three dimensional Pythagoras and trigonometry questions

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

Pythagoras' Theorem

The area of the square on the hypotenuse of a right angled triangle is equal to the sum of the areas of the squares on the two shorter sides.

Pythagoras' Theorem

You may have learned the theorem using letters to stand for the lengths of the sides. The corners (vertices) of the right-angled triangle is labelled with capital (upper case) letters. The lengths of the sides opposite them are labelled with the corresponding small (lower case) letters.

Pythagoras' Theorem

Alternatively the sides of the right-angled triangle may me named using the capital letters of the two points they span.

Pythagoras' Theorem

As triangle can be labelled in many different ways it is probably best to remember the theorem by momorising the first diagram above.

To find the longest side (hypotenuse) of a right-angled triangle you square the two shorter sides, add together the results and then find the square root of this total.

To find a shorter side of a right-angled triangle you subtract the square of the other shorter side from the square of the hypotenuse and then find the square root of the answer.

Example

Pythagoras Example

AB2 = AC2 - BC2
AB2 = 4.72 - 4.12
AB2 = 22.09 - 16.81
AB2 = 5.28
AB = √5.28
AB = 2.3m (to one decimal place)



The diagrams aren't always the same way round. They could be rotated by any angle.

Rotations

The right-angled triangles could be long and thin or short and not so thin.

Different proportions
Don't wait until you have finished the exercise before you click on the 'Check' button. Click it often as you work through the questions to see if you are answering them correctly.
