Using Graphs to Solve Equations

Using and creating graphs to solve quadratics and pairs of simultaneous equations.
  Menu   Level 1 Level 2 Level 3 Level 4 Exam-style   Help     More

A Graphic Display Calculator is require for this level.

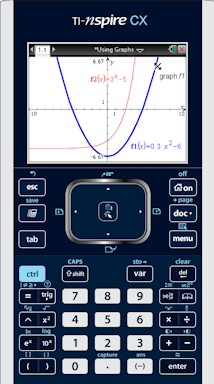

TI-nSpire

If you don't have a GDC try this Graph Plotter.

Use your GDC to find a solution to the following simultaneous equations:

\( \quad \quad y=2.9x-40\)
\( \quad \quad y=23-1.1x\)

Give your answers correct to three significant figures.

\(x =\) ☐ ✓ ✗ ☐\(y =\) ☐ ✓ ✗

3

Solve the following simultaneous equations when \( 0 \lt x \lt 10\):

\( \quad \quad y=\log{x}\)
\( \quad \quad y=\frac{5}{x-7}+3\)

Give the y value correct to three significant figures.

☐\(y =\) ☐ ✓ ✗

4

Solve the following simultaneous equations where \(x\) is measured in degrees:

\( \quad \quad y=2\sin{(x+25)}\)
\( \quad \quad y=3x\)

Give the x value correct to three significant figures.

☐\(x =\) ☐ ✓ ✗

5

Solve the following simultaneous equations where \(x\) is measured in radians:

\( \quad \quad y=2\sin{(x+25)}\)
\( \quad \quad y=3x\)

Give the x value correct to three significant figures.

☐\(x =\) ☐ ✓ ✗

6

Solve the following simultaneous equations where \(x\) is measured in degrees:

\( \quad \quad y=3^x-10\)
\( \quad \quad xy=\cos{x}\)

Give the y value of the solution that has a positive x value correct to three significant figures.

☐\(y =\) ☐ ✓ ✗

Check

This is Using Graphs to Solve Equations level 4. You can also try:
Level 1 Level 2 Level 3

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
